P630SA-V

Description

Caret Down

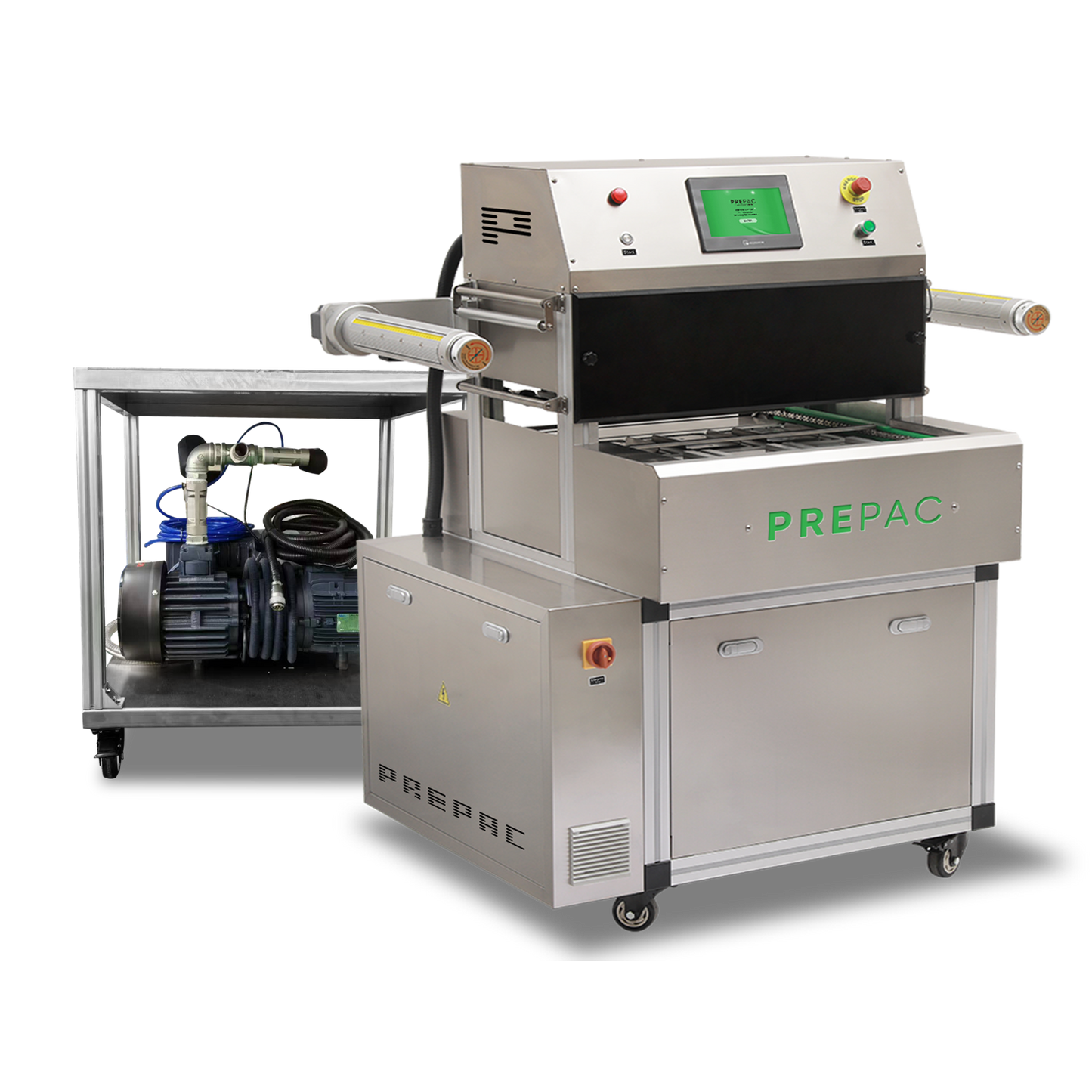

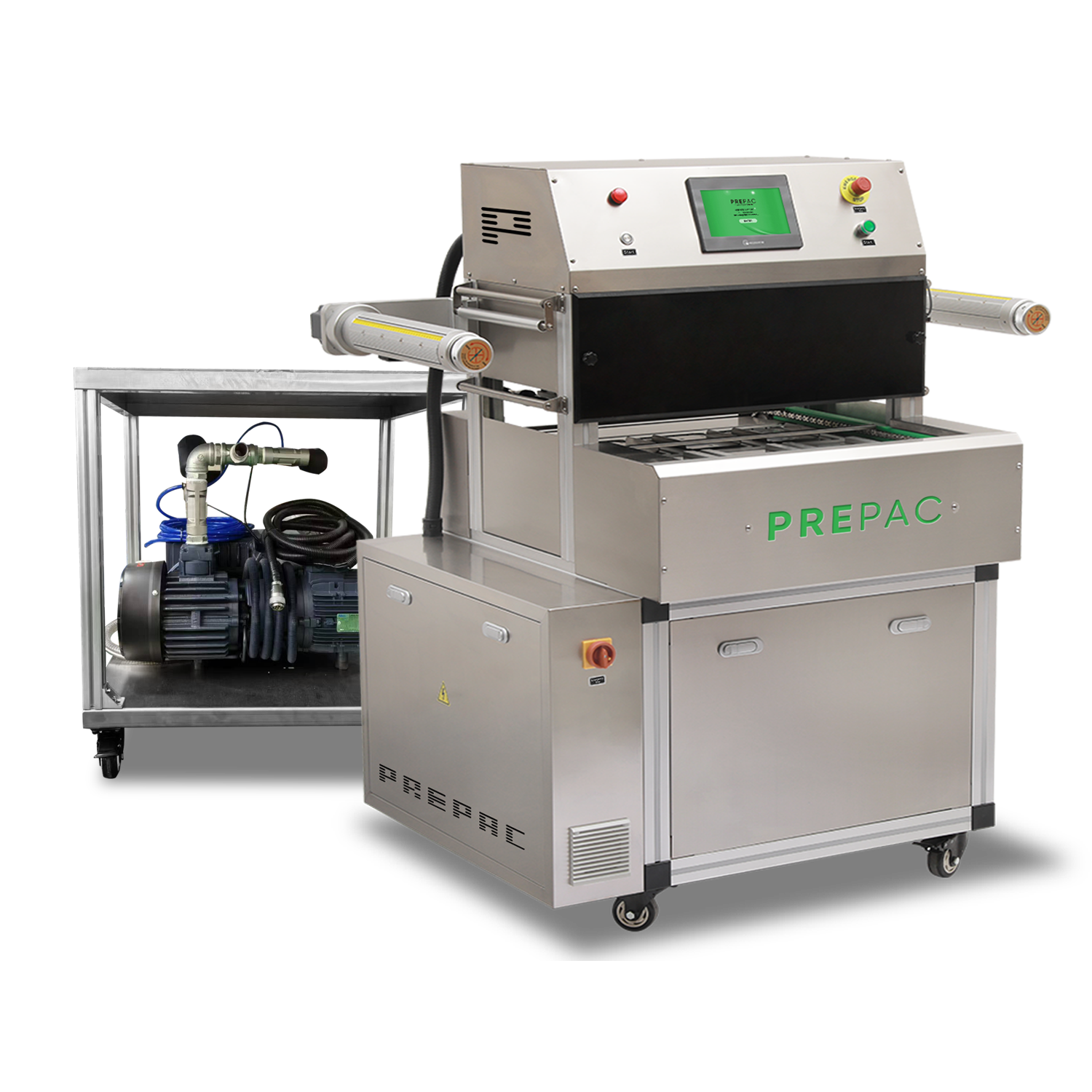

The P630SA-V is a state of the art Automatic in-line tray sealing machine that is mainly used for the package of ready meals, fresh meat and seafood.

With the MAP function of packaging, your product will have the benefit of extended shelf life, with flavours and ingredients kept at their freshest while increasing product presentation.

All of this is achieved in an easy-to-use machine with line conveyor infeed and merging, and conveyor connections out, allowing you to pack efficiently and quickly.

Technical Data

Caret Down

POWER: 20 amp / 3 Phase

CONSUMPTION: 5.5 kw

WEIGHT: 360 kg

AIR SUPPLY REQUIREMENTS: 100L air compressor, 0.6-0.8Mpa

MACHINE DIMENSIONS: 1290 × 900 × 1400

PUMP DIMENSIONS: 800 x 550 x 800

INTERCHANGEABLE TOOLING: NO

MIN TRAY DIMENSIONS: 260×170×80mm (3 up)

MAX TRAY DIMENSIONS: 590 × 260 × 80mm (1 Up)

MAX FILM WIDTH: 320mm

MIN / MAX FILM THICKNESS: 25um / 115um Top Lidding Film

CAPACITY - SEAL ONLY: = 1400/h (output 3)

CAPACITY - GAS FLUSH: = 1200/h (output 3)

CAPACITY - VAC + GAS FLUSH: 900/h (output 3)

PACKAGING TYPE: PULP / PP / PET/RPET / Aluminum foil

Moulds / Tooling

Caret Down

MT Range
MPT Range
PT Range
RB Range
Custom Tooling

Delivery & Installation

Caret Down

We Install and Delivery Australia wide.
Once the machine has been purchase and ready for dispatch, our after sales team will reachout to set up the date and time for the installation. Most of the time we are able to also complete the training on the same day.

Warranty

Caret Down

Warranty Coverage:

  • In-Warranty Period:
    All PREPAC machines are covered by a 1-year limited warranty starting from the date of purchase for in stock items and from date of delivery for bespoke / custom machines. During this period, any manufacturing defects, material defects, or workmanship errors will be repaired or replaced free of charge, subject to the following conditions:

Warranty Services Include:

  • The machine must be used according to the manufacturer’s instructions.
  • Warranty claims must be accompanied by a proof of purchase.
  • The warranty excludes damages caused by improper use, accidents, natural disasters, or unauthorised repairs.
  • Free repairs or replacement of defective parts.
  • Free labour for repairing the machine (if applicable  – within greater Sydney area).

Out-of-Warranty Period:

  • After Warranty Expiry: Once the warranty period expires, the machine is no longer covered for free repairs or replacements under the warranty terms. However, we offer paid repair services for machines outside of the warranty period.

Paid Services Include:

  • Diagnostic services and repairs at the standard rate to be quoted prior to any works starting.
  • Replacement of any parts with an associated charge for parts and labour, to be quoted and accepted prior to any works starting.
  • All spare parts are to be paid in full prior to a dispatch.

Exclusions: The warranty does not cover:

  • Damage resulting from misuse, abuse, or neglect.
  • Normal wear and tear.
  • Any damage caused by third-party repairs or modifications.
  • Damage caused by external factors, such as power surges or water damage or operator negligence.

Warranty Claim Process: To initiate a warranty claim during the warranty period, please contact our Service team 1300 894 960 or email service@prepac.com.au with proof of purchase and a description of the issue. For out-of-warranty services, you may still contact us for a quote on the same channels.



Submit the enquiry form above and we’ll get back to you with some costing on the P630SA-V.

Alternatively please call 1300 459 540 anytime!

P630SA-V
P630SA-V

$43,500.00
